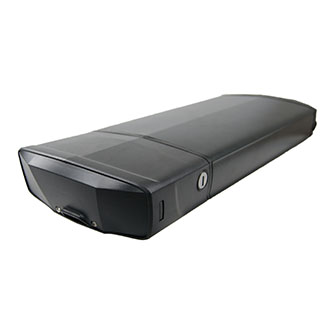

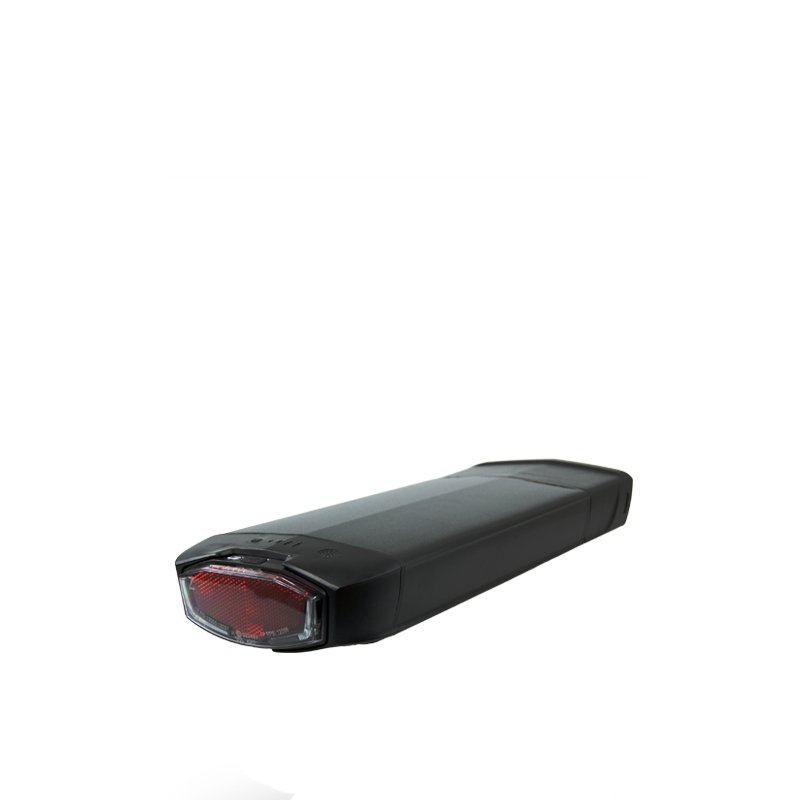

Rear Rack Type Battery
    • Rear Rack Type Battery

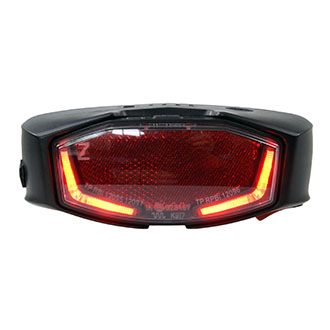

Rear LED light and reflector

LED light can independent light up

,improve your safety at night.


Has controller box design,you don’t

need extra controller box or bag.

Make your e-bike look better.


18650 Rechargeable Lithium Battery cell

No memory effect,recharge up to 800 cycles

Higher energy density and lower weight

than other types rechargeable batteries cell.

*LiFePo4 battery use soft cell


Intelligent charge system:

voltage of each cell can be detected ,

each cell can be protected

against overcharge,

over voltage ,short circuit and

overheat , and so that battery can be

charged balance.


45.jpgSupply different standard plug

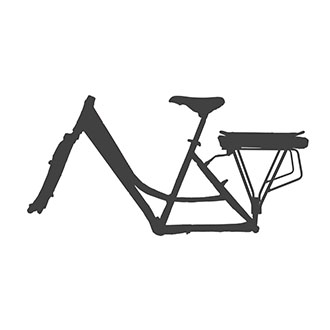

Mounting Position





Technical Parameters



Nominal Voltage Rated Capacity
Battery Materia Battery Cell Dimension Rated Discharge  Current Max Discharge Current Cycle Life
36V 11Ah Li-Polymer 2200mAh 18650 45*16*5.5(cm) 20A 25A

800
  (70%)

36V 13Ah Li-Polymer 2600mAh 18650 45*16*5.5(cm) 20A 25A

800
  (70%)

36V 14.5Ah Li-Polymer 2900mAh 18650 (S) 45*16*5.5(cm) 25A 30A

800
  (70%)

48V 10.4Ah Li-Polymer 2600mAh 18650 (S) (P) 45*16*5.5(cm) 25A 30A

800
 (70%)

48V 11.6Ah Li-Polymer 2900mAh 18650 (S) (P) 45*16*5.5(cm) 30A 35A

800
 (70%)

*S=SAMSUNG

 P=PANASONIC






Rear LED light and reflector

LED light can independent light up

,improve your safety at night.


Has controller box design,you don’t

need extra controller box or bag.

Make your e-bike look better.


18650 Rechargeable Lithium Battery cell

No memory effect,recharge up to 800 cycles

Higher energy density and lower weight

than other types rechargeable batteries cell.

*LiFePo4 battery use soft cell


Intelligent charge system:

voltage of each cell can be detected ,

each cell can be protected

against overcharge,

over voltage ,short circuit and

overheat , and so that battery can be

charged balance.


45.jpgSupply different standard plug

Mounting Position





Technical Parameters



Nominal Voltage Rated Capacity
Battery Materia Battery Cell Dimension Rated Discharge  Current Max Discharge Current Cycle Life
36V 11Ah Li-Polymer 2200mAh 18650 45*16*5.5(cm) 20A 25A

800
  (70%)

36V 13Ah Li-Polymer 2600mAh 18650 45*16*5.5(cm) 20A 25A

800
  (70%)

36V 14.5Ah Li-Polymer 2900mAh 18650 (S) 45*16*5.5(cm) 25A 30A

800
  (70%)

48V 10.4Ah Li-Polymer 2600mAh 18650 (S) (P) 45*16*5.5(cm) 25A 30A

800
 (70%)

48V 11.6Ah Li-Polymer 2900mAh 18650 (S) (P) 45*16*5.5(cm) 30A 35A

800
 (70%)

*S=SAMSUNG

 P=PANASONIC
