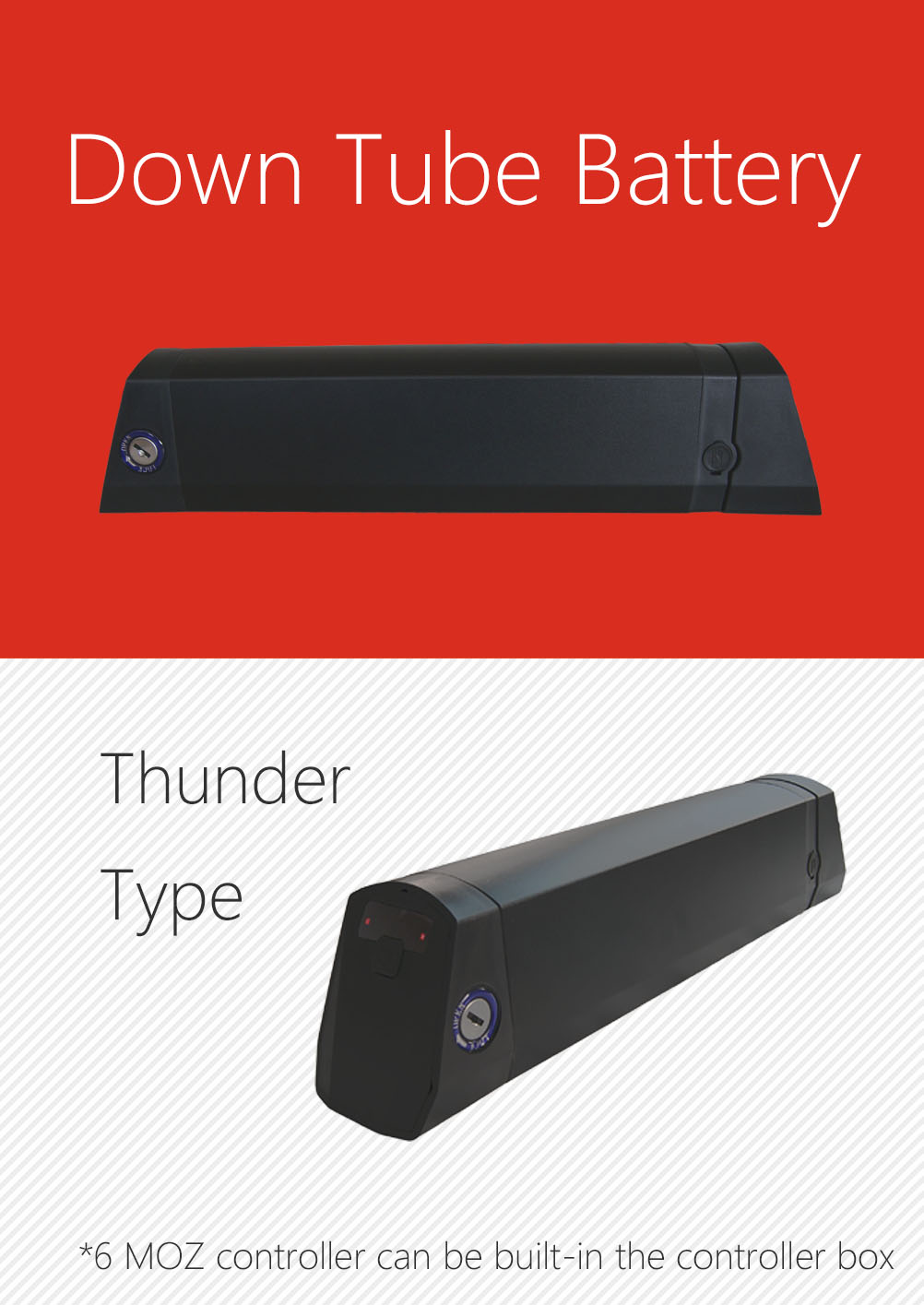

Thunder Type Battery
  • E-mail: wendy@cnebikes.com
  • Brief Introduction:
    Safe: The li-ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat. Environment-friendly: Accredited with CE, without any hazardous and noxious substances. Small in volume and light in weight: The li-ion electric bike battery is about 1/2 the...
  • Inquiry Now

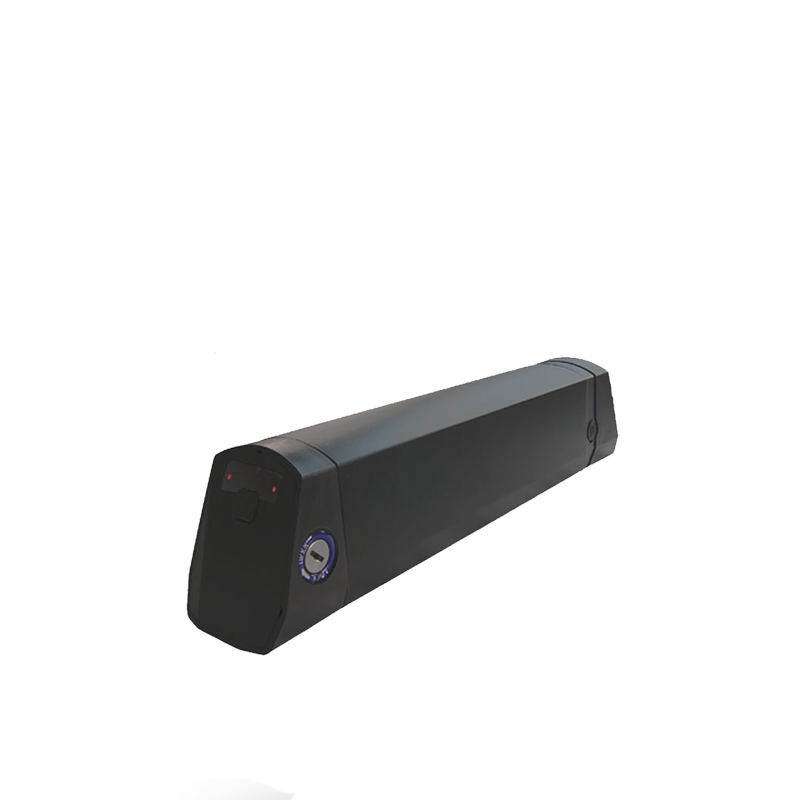

    • Thunder Type Battery


40PCS 18650 Cylinder cells

High quality  battery lock

2Pins discharging plug

Integrated with  Mini  controller

Waterproof grade: IP65

DC2.1 charging Port (optional 5Pin high current charging Plug)

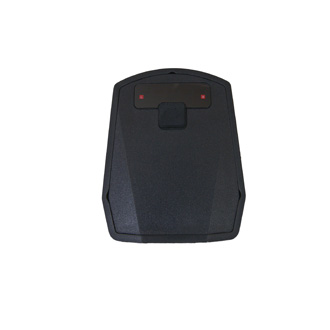

72.jpgINDICATOR
LED lights show battery capacity
With Independent power switch.

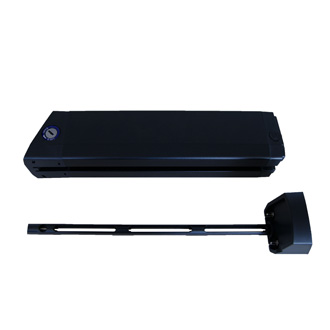

ALUMINUM HOLDER
Secure Keep your battery on the frame

Built-in BMS (BATTERY MANAGEMENT
SYSTEM),Protect the battery to avoid
overcharge and over discharge

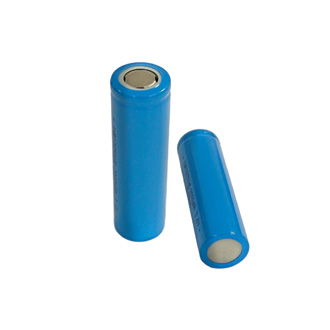

BATTERY CELL
18650 Rechargeable Lithium Battery cell.

No memory effect, recharge up to 1000 cycles.

Higher energy density and lower weight than
other types rechargeable batteries cell.

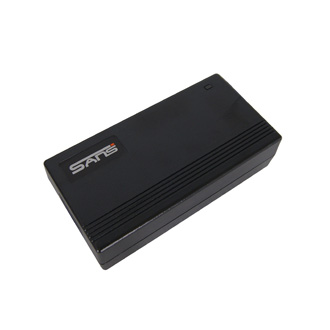

CHARGER

Intelligent charge system: voltage of

each cell can be detected ,each cell
can beprotected against overcharge,
over voltage ,short circuit and
overheat , and so that battery can be
charged balance.

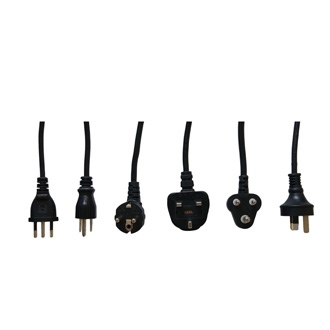

55.jpgPLUG
Supply different standard plug

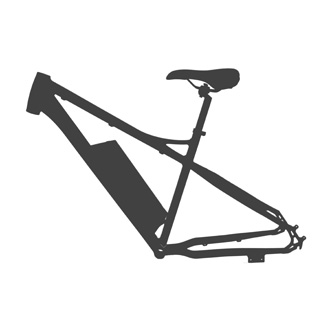

c2.jpgMOUNTING POSITION




Technical Parameters



  Nominal

  Voltage

  Rated

  Capacity

  Battery

  Material

  Battery Cell   Dimension

  Rated Discharge

   Current

  Max Discharge

  Current

  Cycle Life
36V 10.4Ah Li-Polymer   3.7V 2600mAh     (S)   41*7*8.5(cm) 20A 25A   800(70%)
36V 11.6Ah Li-Polymer   3.7V 2900mAh     (S)   41*7*8.5(cm) 20A 25A   800(70%)
48V 8.7Ah Li-Polymer   3.7V 2900mAh     (S)   41*7*8.5(cm) 20A 25A   800(70%)

*S=SAMSUNG




40PCS 18650 Cylinder cells

High quality  battery lock

2Pins discharging plug

Integrated with  Mini  controller

Waterproof grade: IP65

DC2.1 charging Port (optional 5Pin high current charging Plug)

72.jpgINDICATOR
LED lights show battery capacity
With Independent power switch.

ALUMINUM HOLDER
Secure Keep your battery on the frame

Built-in BMS (BATTERY MANAGEMENT
SYSTEM),Protect the battery to avoid
overcharge and over discharge


BATTERY CELL
18650 Rechargeable Lithium Battery cell.

No memory effect, recharge up to 1000 cycles.

Higher energy density and lower weight than
other types rechargeable batteries cell.


CHARGER

Intelligent charge system: voltage of

each cell can be detected ,each cell
can beprotected against overcharge,
over voltage ,short circuit and
overheat , and so that battery can be
charged balance.

55.jpgPLUG
Supply different standard plug
c2.jpgMOUNTING POSITION




Technical Parameters



  Nominal

  Voltage

  Rated

  Capacity

  Battery

  Material

  Battery Cell   Dimension

  Rated Discharge

   Current

  Max Discharge

  Current

  Cycle Life
36V 10.4Ah Li-Polymer   3.7V 2600mAh     (S)   41*7*8.5(cm) 20A 25A   800(70%)
36V 11.6Ah Li-Polymer   3.7V 2900mAh     (S)   41*7*8.5(cm) 20A 25A   800(70%)
48V 8.7Ah Li-Polymer   3.7V 2900mAh     (S)   41*7*8.5(cm) 20A 25A   800(70%)

*S=SAMSUNG
