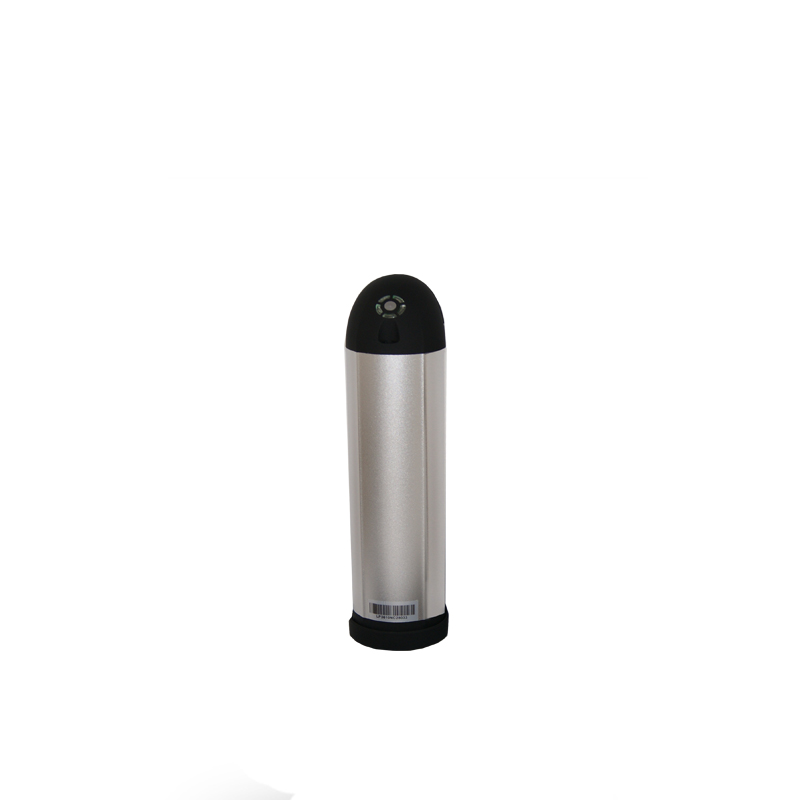

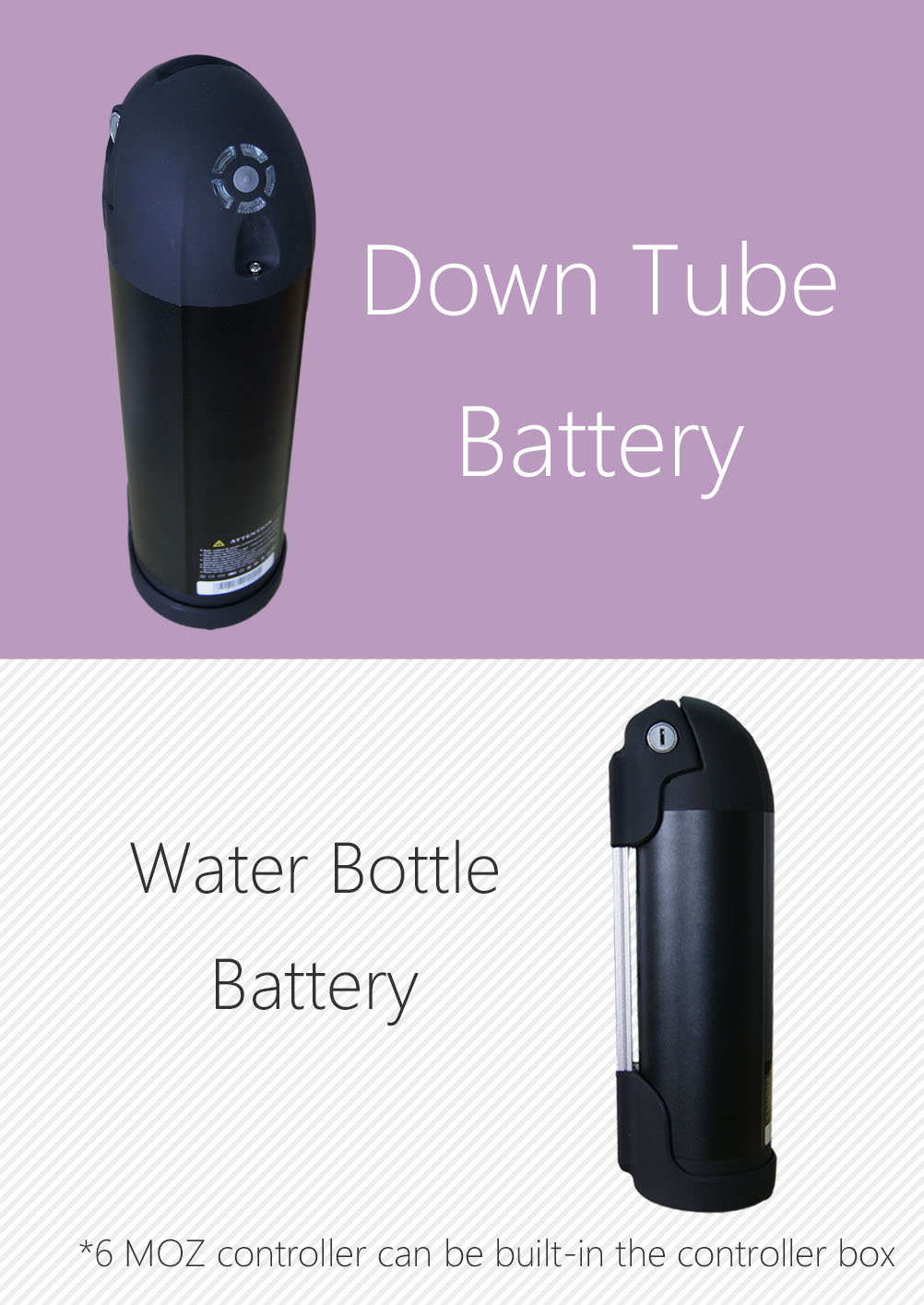

Water Bottle Type Battery
  • E-mail: wendy@cnebikes.com
  • Brief Introduction:
    Safe: The li-ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat. Environment-friendly: Accredited with CE, without any hazardous and noxious substances. Small in volume and light in weight: The li-ion electric bike battery is about 1/2 the...
  • Inquiry Now
    • Water Bottle Type Battery



Features:


A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

B. Long life-cycle: Can be circularly used, best can up to 800 times recycles, 8 times of Lead acid battery.

C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

D. Good performance at high temperature and high temperature resistance

E. Low self-discharge rate, less than 3% monthly.

F. No memory effects and highly efficient charge.

G. Environment friendly: Clean and Green energy poses no pollution on our environment.

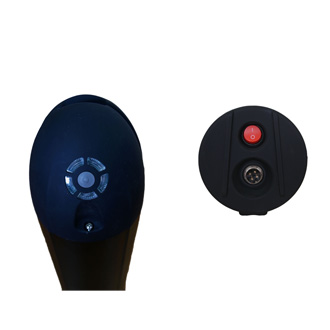

41.jpgINDICATOR
LED lights show battery capacity.
With Independent power switch.

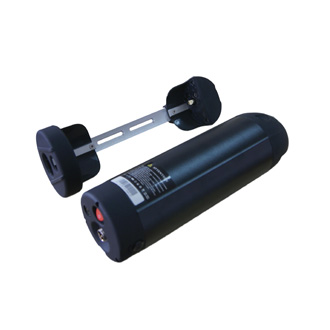

ALUMINUM HOLDER
Secure Keep your battery on the frame

Built-in BMS (BATTERY MANAGEMENT
SYSTEM),protect the battery to avoid
overcharge and over discharge.

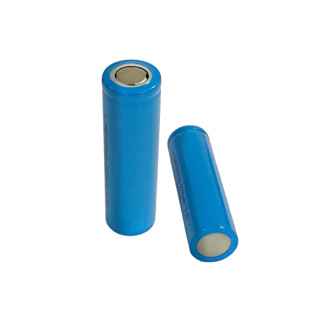

BATTERY CELL
18650 Rechargeable Lithium Battery cell.

No memory effect,recharge up to 800 cycles.

Higher energy density and lower weight than
other types rechargeable batteries cell.

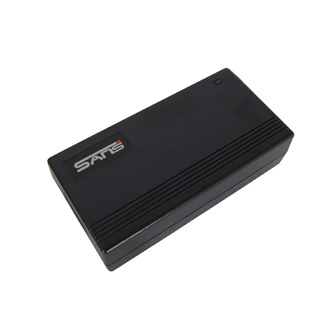

44.jpgCHARGER
Intelligent charge system: voltage of each cell can be detected ,each cell can be
protected against overcharge, over voltage ,short circuit and overheat , and so that battery can be charged balance.

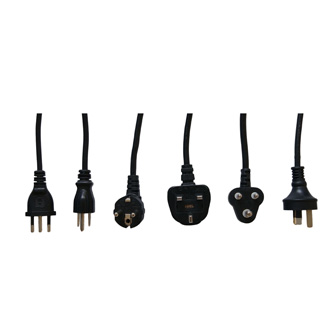

45.jpgPLUG
Supply relevant plug to your countries.

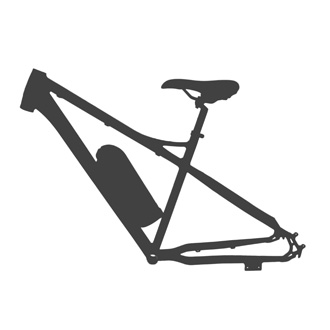

46.jpgMOUNTING POSITION







Technical Parameters


  Nominal Voltage   36V   36V
  Rated Capacity   9Ah   11Ah
  Battery Material   Li-polymer   Li-polymer
  Battery Cell   3.7V 2200mAh    3.7V 2200mAh
  Dimension   9.5*9.5*33(cm)   9.5*9.5*40(cm)
  Rated Discharge Current   20A   20A
  Max Discharge Current   25A   25A
  Cycle Life   800(70%)   800(70%)



Features:


A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

B. Long life-cycle: Can be circularly used, best can up to 800 times recycles, 8 times of Lead acid battery.

C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

D. Good performance at high temperature and high temperature resistance

E. Low self-discharge rate, less than 3% monthly.

F. No memory effects and highly efficient charge.

G. Environment friendly: Clean and Green energy poses no pollution on our environment.


41.jpgINDICATOR
LED lights show battery capacity.
With Independent power switch.

ALUMINUM HOLDER
Secure Keep your battery on the frame

Built-in BMS (BATTERY MANAGEMENT
SYSTEM),protect the battery to avoid
overcharge and over discharge.


BATTERY CELL
18650 Rechargeable Lithium Battery cell.

No memory effect,recharge up to 800 cycles.

Higher energy density and lower weight than
other types rechargeable batteries cell.

44.jpgCHARGER
Intelligent charge system: voltage of each cell can be detected ,each cell can be
protected against overcharge, over voltage ,short circuit and overheat , and so that battery can be charged balance.
45.jpgPLUG
Supply relevant plug to your countries.
46.jpgMOUNTING POSITION







Technical Parameters


  Nominal Voltage   36V   36V
  Rated Capacity   9Ah   11Ah
  Battery Material   Li-polymer   Li-polymer
  Battery Cell   3.7V 2200mAh    3.7V 2200mAh
  Dimension   9.5*9.5*33(cm)   9.5*9.5*40(cm)
  Rated Discharge Current   20A   20A
  Max Discharge Current   25A   25A
  Cycle Life   800(70%)   800(70%)
