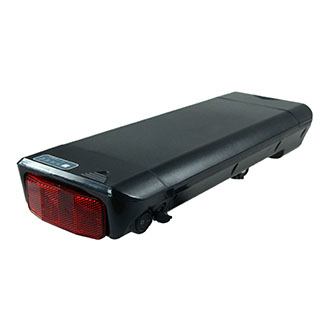

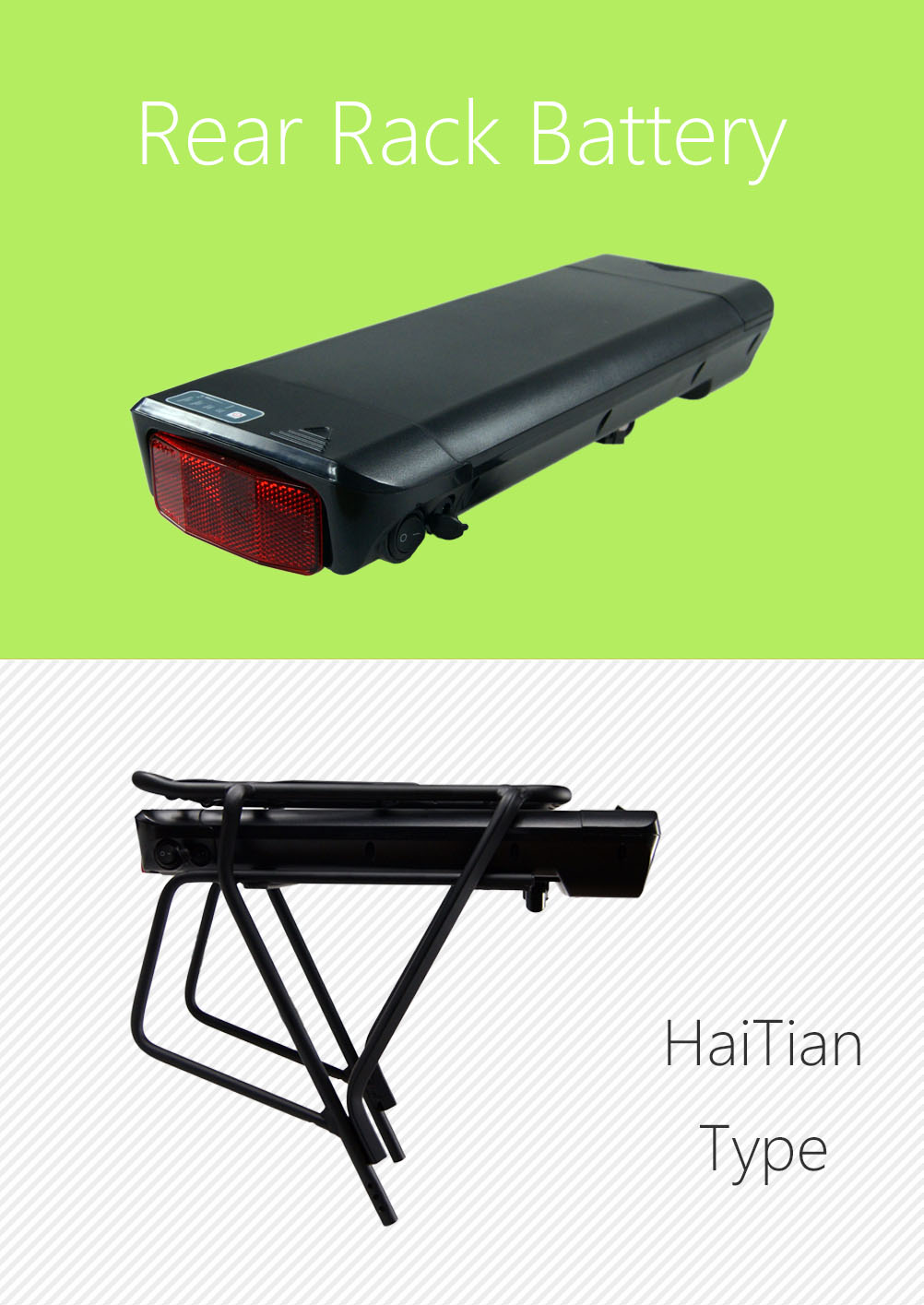

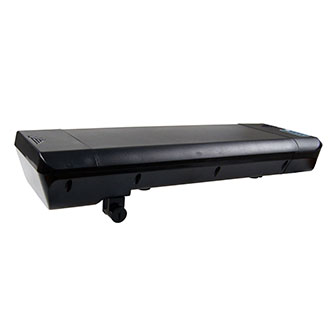

Rear Rack Type Battery
    • Rear Rack Type Battery





Rear reflector

Improve your safety at night.


Has controller box design,you don't

need extra controller box or bag.

Make your e-bike look better.


18650 Rechargeable Lithium Battery cell

No memory effect,recharge up to 800 cycles

Higher energy density and lower weight

than other types rechargeable batteries cell.

*LiFePo4 battery use soft cell


Intelligent charge system:

Voltage of each cell can be detected,each cell can be protected.

Against overcharge,over voltage,short circuit andoverheat,and so that battery can be charged balance.


45.jpgSupply different standard plug

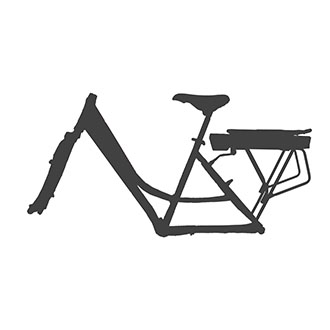

Mounting Position





Technical Parameters



Nominal Voltage Rated Capacity
Battery Materia Battery Cell Dimension Rated Discharge  Current Max Discharge Current Cycle Life
36V 8.8Ah Li-Polymer 3.7V 2200mAh 42*15*5.5(cm) 20A 25A

          800

        (70%)

36V 10.4Ah Li-Polymer 37V 2600mAh 42*15*5.5(cm) 20A 25A

          800

        (70%)

36V 11.6Ah Li-Polymer 3.7V 2900mAh  (S) 42*15*5.5(cm) 20A 25A

          800

        (70%)

48V 8.7Ah Li-Polymer

      3.7V 2900mAh (S) (P)

42*15*5.5(cm) 20A 25A

          800

        (70%)

*S=SAMSUNG

 P=PANASONIC
