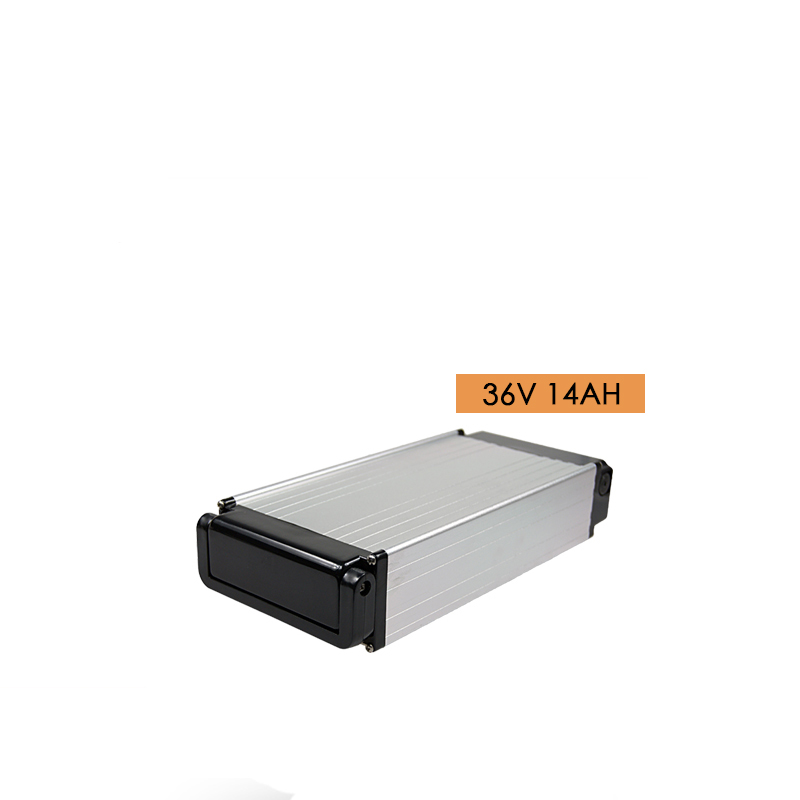

36V 14Ah REAR RACK TYPE BATTERY
    • 36V 14Ah REAR RACK TYPE BATTERY



rear rack type battery ALUMINU
Aluminium alloy battery case.
firm,handiness and fashionable.
rack type battery.jpg

LOCK
ON/OFF switch,lock to the frame to avoid
stolen.

Built-in BMS(BATTERY MANAGEMENT
SYSTEM),
Protect the battery to avoid overcharge
and over discharge

18650 cell.jpg

BATTERY CELL
18650 Rechargeable Lithium Battery cell.

No memory effect, recharge up to 1000 cycles.

Higher energy density and lower weight than
other types rechargeable batteries cell.
*LiFePo4 battery use soft cell




charger.jpg CHARGER
Intelligent charge system: voltage of
each cell can be detected ,each cell can
be protected against overcharge, over
voltage ,short circuit and overheat ,and
so that battery can be charged balance.
plug.jpg PLUG
Supply different standard plug
mounting position.jpg MOUNTING POSITION





Technical Parameters



Nominal Voltage Rated Capacity
Battery Materia Battery Cell Dimension Rated Discharge  Current Max Discharge Current Cycle Life
36V 11Ah Li-Polymer 3.7V 2200mAh 36.5*15*7(cm) 20A 25A

          800

        (70%)

36V 14Ah Li-Polymer 3.7V 2200mAh 34.5*15*7(cm) 20A 25A

          800

        (70%)

48V 11Ah Li-Polymer  3.7V 2200mAh  36.5*15*7(cm) 20A 25A

          800

        (70%)

48V 14Ah Li-Polymer 3.7V 2900mAh(LG) 34.5*15*8.5(cm) 20A 25A

          800

        (70%)

48V 20Ah Li-Polymer 3.7V 2900mAh(LG) 39.5*15*8.5(cm) 20A 25A

          800

        (70%)
