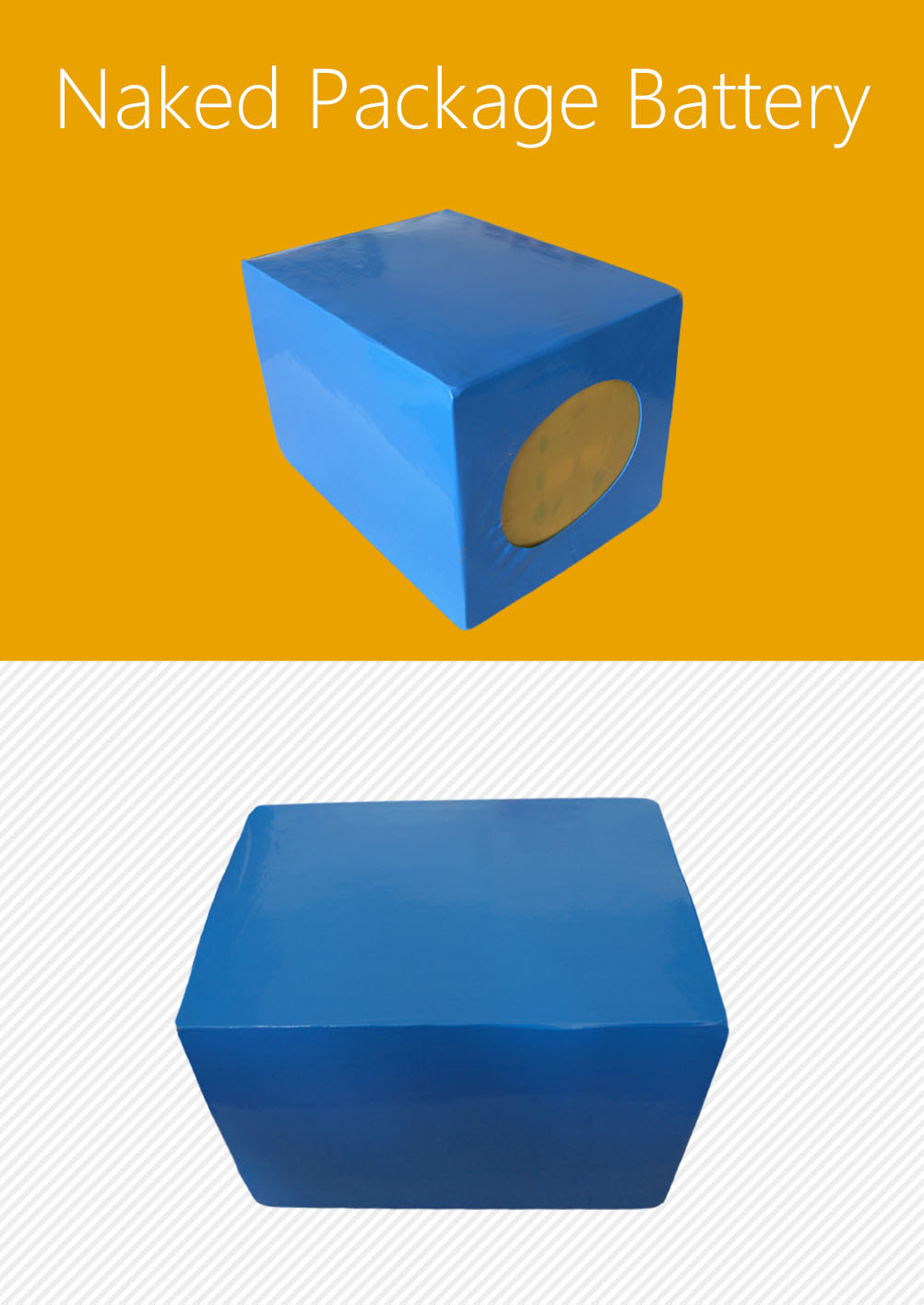

Naked Package Battery
    • Naked Package Battery

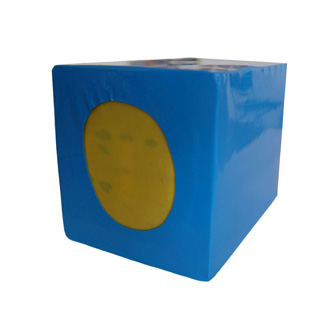

BATTEERY

Battery capacity and size can be
customized.

Built-in BMS (BATTERY MANAGEMENT
SYSTEM),protect
the battery to avoid
overcharge and
over discharge.

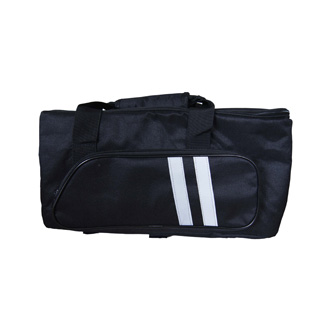

BATTERY BAG
Use magic tape and nylon cord fixed
the bag on the rack.

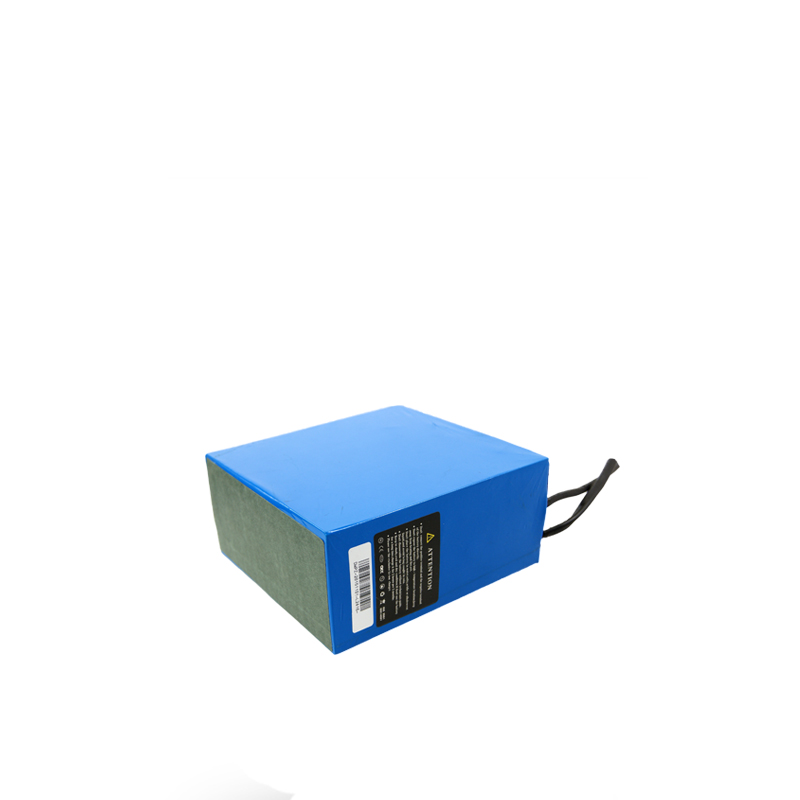

BATTERY CELL
18650 Rechargeable Lithium Battery cell.
No memory effect, recharge up to 1000 cycles.

Higher energy density and lower weight than
other types rechargeable batteries cell.
*LiFePo4 battery use soft cell.

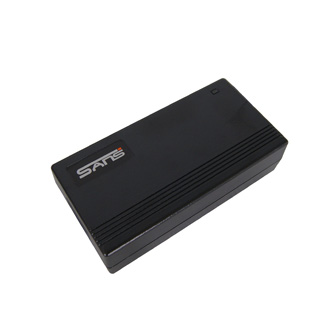

CHARGER
Intelligent charge system: voltage of
each cell can be detected ,each cell
can beprotected against overcharge,
over voltage ,short circuit and
overheat , and so that battery can be
charged balance.

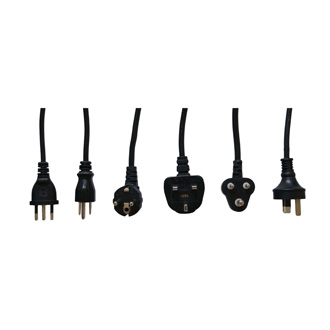

PLUG
Supply relevant plug to your countries.

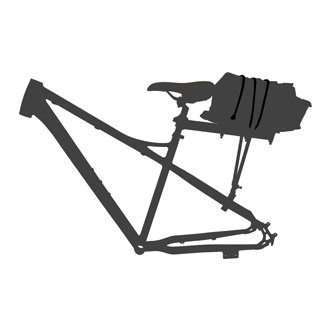

MOUNTING POSITION






Personalized Customization

Material : Li-polymer / Li-Mn / LiFePo4

Capacity : 48V 20Ah ; 60V 30Ah ; 72V 30Ah ; 72V 40Ah



Technical Parameters

    Battery Material    Li-polymer
    Nominal Voltage    48V
    Rated Capicaty    20AH
    Max Charge Voltage    54.6V
    Max Charge Current    2A
    Min Discharge Voltage    39V
    Rated Discharge Current    20A
    Max Discharge Current    40A
    Over Current Protection     30A
    Cycle Life    About 800 cycles
    Charge Temperature    0-45℃
    Discharge Temperature    -20-55℃
    Certificates    CE、UL
    Range with one charge    ≥40km (Motor 1000W )






BATTEERY

Battery capacity and size can be
customized.

Built-in BMS (BATTERY MANAGEMENT
SYSTEM),protect
the battery to avoid
overcharge and
over discharge.

BATTERY BAG
Use magic tape and nylon cord fixed
the bag on the rack.

BATTERY CELL
18650 Rechargeable Lithium Battery cell.
No memory effect, recharge up to 1000 cycles.

Higher energy density and lower weight than
other types rechargeable batteries cell.
*LiFePo4 battery use soft cell.


CHARGER
Intelligent charge system: voltage of
each cell can be detected ,each cell
can beprotected against overcharge,
over voltage ,short circuit and
overheat , and so that battery can be
charged balance.

PLUG
Supply relevant plug to your countries.

MOUNTING POSITION






Personalized Customization

Material : Li-polymer / Li-Mn / LiFePo4

Capacity : 48V 20Ah ; 60V 30Ah ; 72V 30Ah ; 72V 40Ah



Technical Parameters

    Battery Material    Li-polymer
    Nominal Voltage    48V
    Rated Capicaty    20AH
    Max Charge Voltage    54.6V
    Max Charge Current    2A
    Min Discharge Voltage    39V
    Rated Discharge Current    20A
    Max Discharge Current    40A
    Over Current Protection     30A
    Cycle Life    About 800 cycles
    Charge Temperature    0-45℃
    Discharge Temperature    -20-55℃
    Certificates    CE、UL
    Range with one charge    ≥40km (Motor 1000W )
