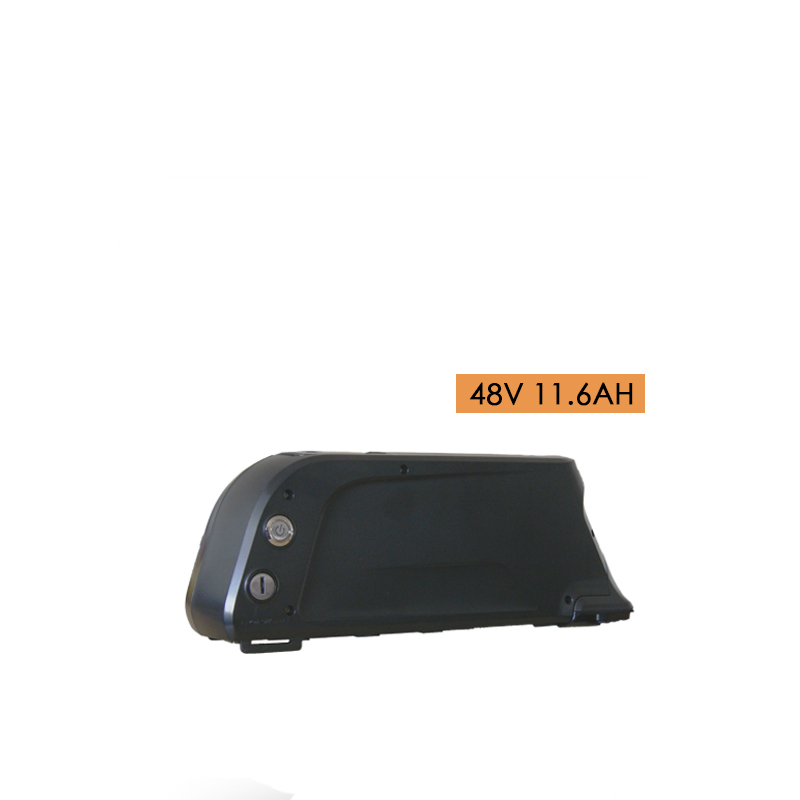

48V 11.6Ah DOLPHIN BATTERY
    • 48V 11.6Ah DOLPHIN BATTERY


Features


A.Mounting bracket bolts onto the bicycle's water bottle mount.

   Lockable and removable with 2 keys

B.5V USB port for charging devices

C.Charge level indicator

D.lightweight ~ 7 lbs

E.Dimensions: 9cm wide,11.5cm high,35cm long.It has a tapered shape with the back end at 5 inches tall and the front end 4 1/4 inches tall.

F.2 Amp charger included


51.jpgUSB CHARGING PORT
Provide power to motor also can charging
your phone at the same time.

ALUMINUM HOLDER
Secure Keep your battery on the frame.

Built-in BMS (BATTERY MANAGEMENT
SYSTEM),Protect the battery to avoid
overcharge and over discharge.


BATTERY CELL
18650 Rechargeable Lithium Battery cell.
No memory effect, recharge up to 1000 cycles.
Higher energy density and lower weight than

other types rechargeable batteries cell.

54.jpgCHARGER
Intelligent charge system: voltage of
each cell can be detected ,each cell
can beprotected against overcharge,
over voltage ,short circuit and
overheat, and so that battery can be
charged balance.
55.jpgPLUG
Supply relevant plug to your countries.
56.jpgMOUNTING POSITION






Technical Parameters



  Nominal

  Voltage

  Rated

  Capacity

  Battery

  Material

  Battery Cell   Dimension

  Rated Discharge

   Current

  Max Discharge

  Current

  Cycle Life
  36V   10Ah   Li-Polymer   3.7V 2200mAh   35*9*11.5(cm)   20A   25A   800(70%)
  36V   13Ah   Li-Polymer   3.7V 2600mAh     (S)   35*9*11.5(cm)   20A   25A   800(70%)
  48V   10.4Ah   Li-Polymer   3.7V 2600mAh     (S)   35*9*11.5(cm)   25A   30A   800(70%)
  48V   11.6Ah   Li-Polymer   3.7V 2900mAh     (S) (P)   35*9*11.5(cm)   30A   35A   800(70%)

*S=SAMSUNG

P=PANASONIC




Features


A.Mounting bracket bolts onto the bicycle's water bottle mount.

   Lockable and removable with 2 keys

B.5V USB port for charging devices

C.Charge level indicator

D.lightweight ~ 7 lbs

E.Dimensions: 9cm wide,11.5cm high,35cm long.It has a tapered shape with the back end at 5 inches tall and the front end 4 1/4 inches tall.

F.2 Amp charger included


51.jpgUSB CHARGING PORT
Provide power to motor also can charging
your phone at the same time.

ALUMINUM HOLDER
Secure Keep your battery on the frame.

Built-in BMS (BATTERY MANAGEMENT
SYSTEM),Protect the battery to avoid
overcharge and over discharge.


BATTERY CELL
18650 Rechargeable Lithium Battery cell.
No memory effect, recharge up to 1000 cycles.
Higher energy density and lower weight than

other types rechargeable batteries cell.

54.jpgCHARGER
Intelligent charge system: voltage of
each cell can be detected ,each cell
can beprotected against overcharge,
over voltage ,short circuit and
overheat, and so that battery can be
charged balance.
55.jpgPLUG
Supply relevant plug to your countries.
56.jpgMOUNTING POSITION






Technical Parameters



  Nominal

  Voltage

  Rated

  Capacity

  Battery

  Material

  Battery Cell   Dimension

  Rated Discharge

   Current

  Max Discharge

  Current

  Cycle Life
  36V   10Ah   Li-Polymer   3.7V 2200mAh   35*9*11.5(cm)   20A   25A   800(70%)
  36V   13Ah   Li-Polymer   3.7V 2600mAh     (S)   35*9*11.5(cm)   20A   25A   800(70%)
  48V   10.4Ah   Li-Polymer   3.7V 2600mAh     (S)   35*9*11.5(cm)   25A   30A   800(70%)
  48V   11.6Ah   Li-Polymer   3.7V 2900mAh     (S) (P)   35*9*11.5(cm)   30A   35A   800(70%)

*S=SAMSUNG

P=PANASONIC
