Font/Rear Wheel 36V 250W/350W Geared Hub Motor Kit
  • E-mail: info@cnebikes.com
  • Brief Introduction:
    Then you please consider our geared hub motor Wheel Electric Bicycle Kit. This geared hub motor kit comes complete with a magnetic pedal to help assist your ride, a thumb throttle for easy acceleration, and you can add one of the best e-bike batteries.
  • Inquiry Now
    • Font/Rear Wheel 36V 250W/350W Geared Hub Motor Kit
    • Font/Rear Wheel 36V 250W/350W Geared Hub Motor Kit
    • Font/Rear Wheel 36V 250W/350W Geared Hub Motor Kit
    • Font/Rear Wheel 36V 250W/350W Geared Hub Motor Kit
    • Font/Rear Wheel 36V 250W/350W Geared Hub Motor Kit
    • Font/Rear Wheel 36V 250W/350W Geared Hub Motor Kit


geared hub motor

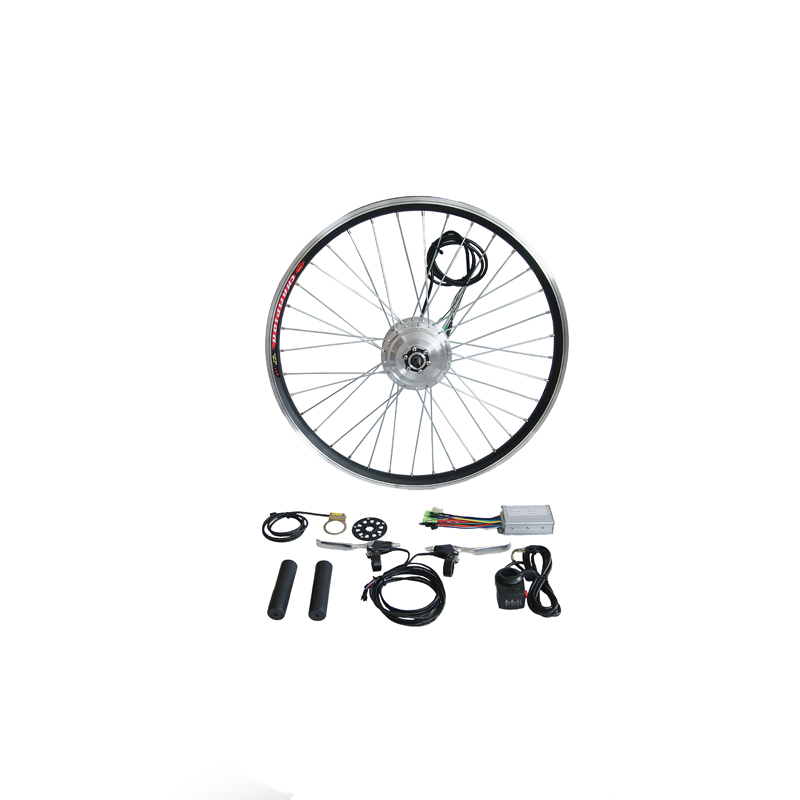

36V 250W/350W Geared Hub Motor Kits


Tired of pedaling that bike all day? Then you please consider our geared hub motor Wheel Electric Bicycle Kit. This geared hub motor kit comes complete with a magnetic pedelic to help assist your ride, a thumb throttle for easy accelleration, and you can add one of the best e-bike batteries.

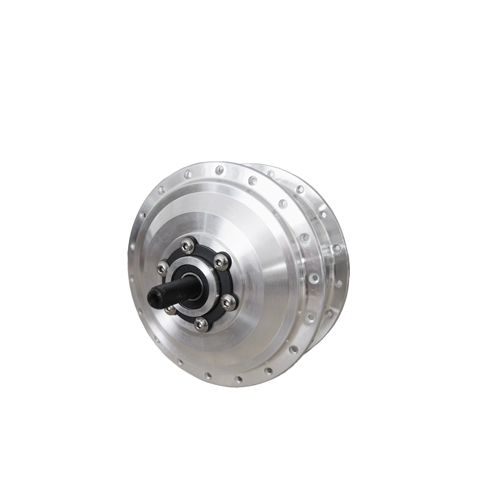

250w geared motor.jpg

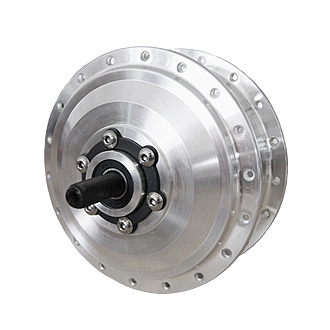

MOTOR
With 2.7kg light weight ,good looking
silver appearance,80% high efficiency.

Bring you a very free and fluent riding
experience.

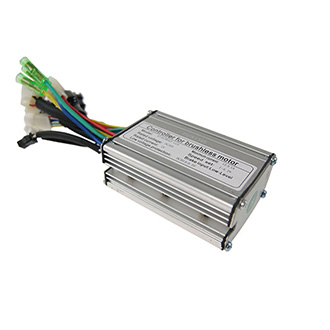

controller

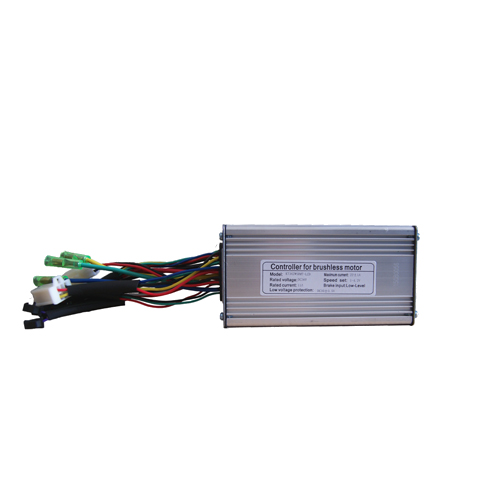

CONTROLLER
36V 15A/17A brushless DC motor
controller.

Intelligent controller,engineered to
be safe, prevent overheating and avoid
motor or battery damage.

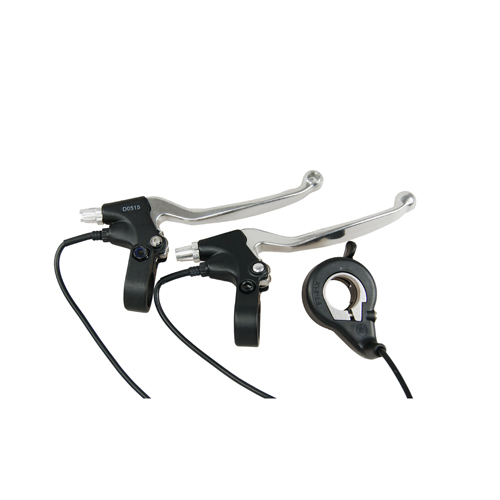

brake levers

BRAKE
WuXing aluminum brake levers

Shut off the motor when you brake.

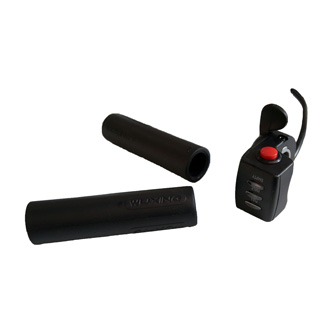

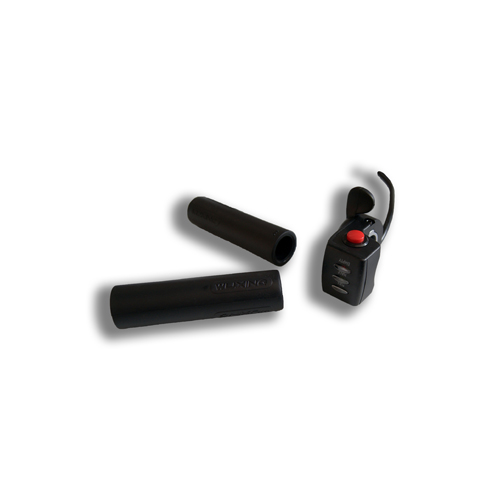

THROTTLE
WuXing thumb throttle (with battery
indicator).

Control Speed by moving the thumb
Beautiful design with good quality
and nice touch feeling

*If choose LED or LCD system , the
throttle without battery indicator

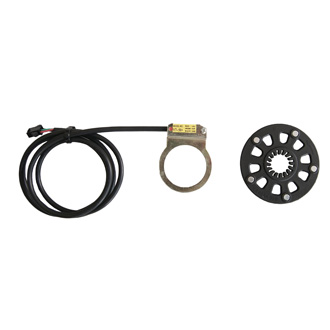

PAS
1:1PAS system use the inertia in riding
and the motor power, to make your
riding use less effort and electric.

Reduce the burden on the battery,
extend the range and battery life at
the same time.

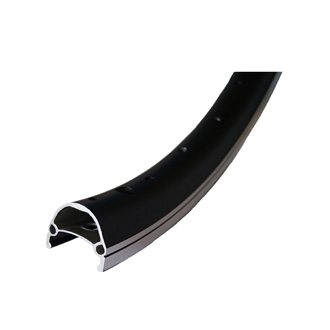

RIM
Aluminium alloy double-wall alloy rim
Suitable 1.75-2.125 tyre;36 holes hub.

Provide 16" 20" 24" 26" 28" 700C size
for optional.





Optional Display

LED LED LCD001 LCD 001 LCD003 LCD 003
LCD005 LCD 005 LCD S830 LCD S830





Technical Parameters


  Rated Power

  250W   350W

  Nominal Voltage

  36V   36V

  Position

  Front Motor/Rear Motor   Front Motor/Rear Motor

  Construction

  Brushless Geared Motor   Brushless Geared Motor

  RPM

  180-235   180-235

  Max Torque

  15N.m   15N.m

  Efficiency

  80%   80%

  Hall Sensor

  With   With

  Axle

  100mm(Front)/135mm(Rear)   100mm(Front)/135mm(Rear)
