Brief Introduction:
Tired of pedaling that bike all day? Then you please consider our geared hub motor Wheel Electric Bicycle Kit. This geared hub motor kit comes complete with a magnetic pedelic to help assist your ride, a thumb throttle for easy accelleration, and you can add one of the best e-bike batteries.
Inquiry Now

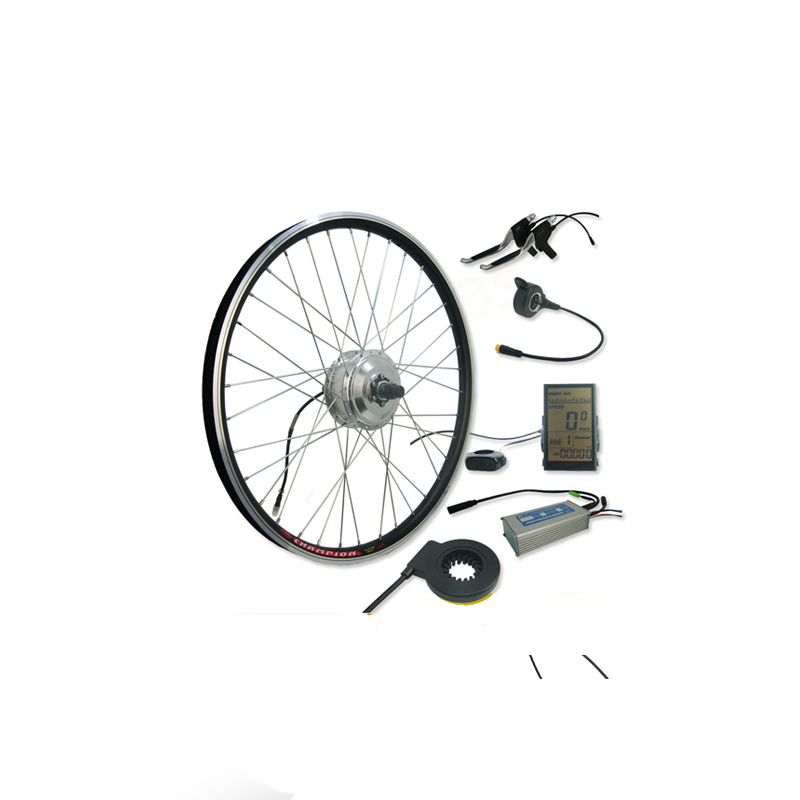

36V 250W/350W Geared Hub Motor Kits

Tired of pedaling that bike all day? Then you please consider our geared hub motor Wheel Electric Bicycle Kit. This geared hub motor kit comes complete with a magnetic pedelic to help assist your ride, a thumb throttle for easy accelleration, and you can add one of the best e-bike batteries.

MOTOR
With 2.7kg light weight ,good looking
silver appearance,80% high efficiency.

Bring you a very free and fluent riding
experience.

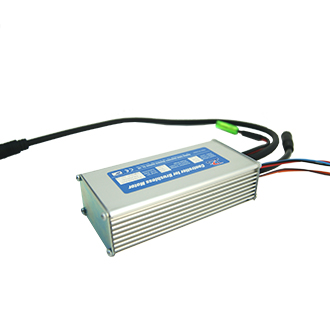

CONTROLLER
36V 13A LD-LS01-C controller

Intelligent controller,engineered to
be safe, prevent overheating and avoid
motor or battery damage.

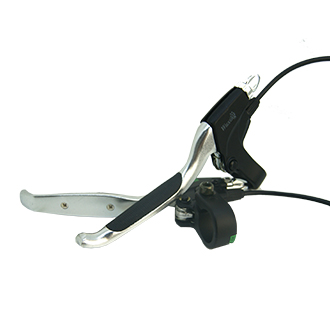

BRAKE
WuXing aluminum brake levers

Shut off the motor when you brake.

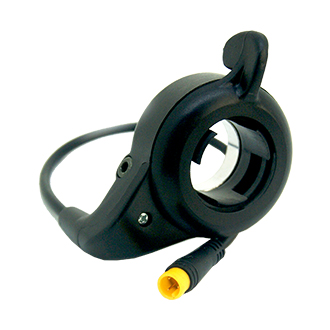

THROTTLE
WuXing thumb throttle (with battery
indicator).

Control Speed by moving the thumb
Beautiful design with good quality
and nice touch feeling

*If choose LED or LCD system , the
throttle without battery indicator

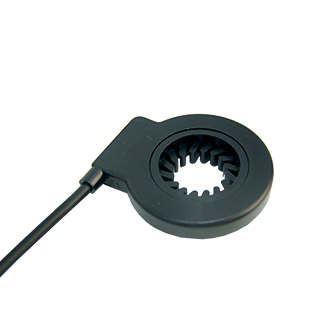

PAS
1:1PAS system use the inertia in riding
and the motor power, to make your
riding use less effort and electric.

Reduce the burden on the battery,
extend the range and battery life at
the same time.

RIM
Aluminium alloy double-wall alloy rim
Suitable 1.75-2.125 tyre;36 holes hub.

Provide 16" 20" 24" 26" 28" 700C size
for optional.

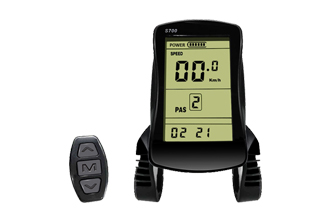

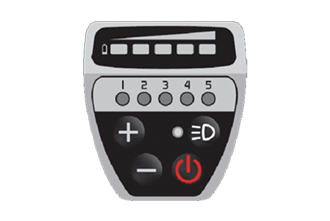

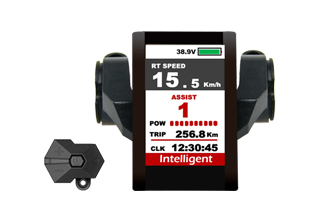

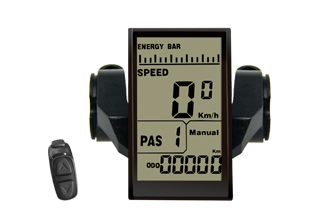

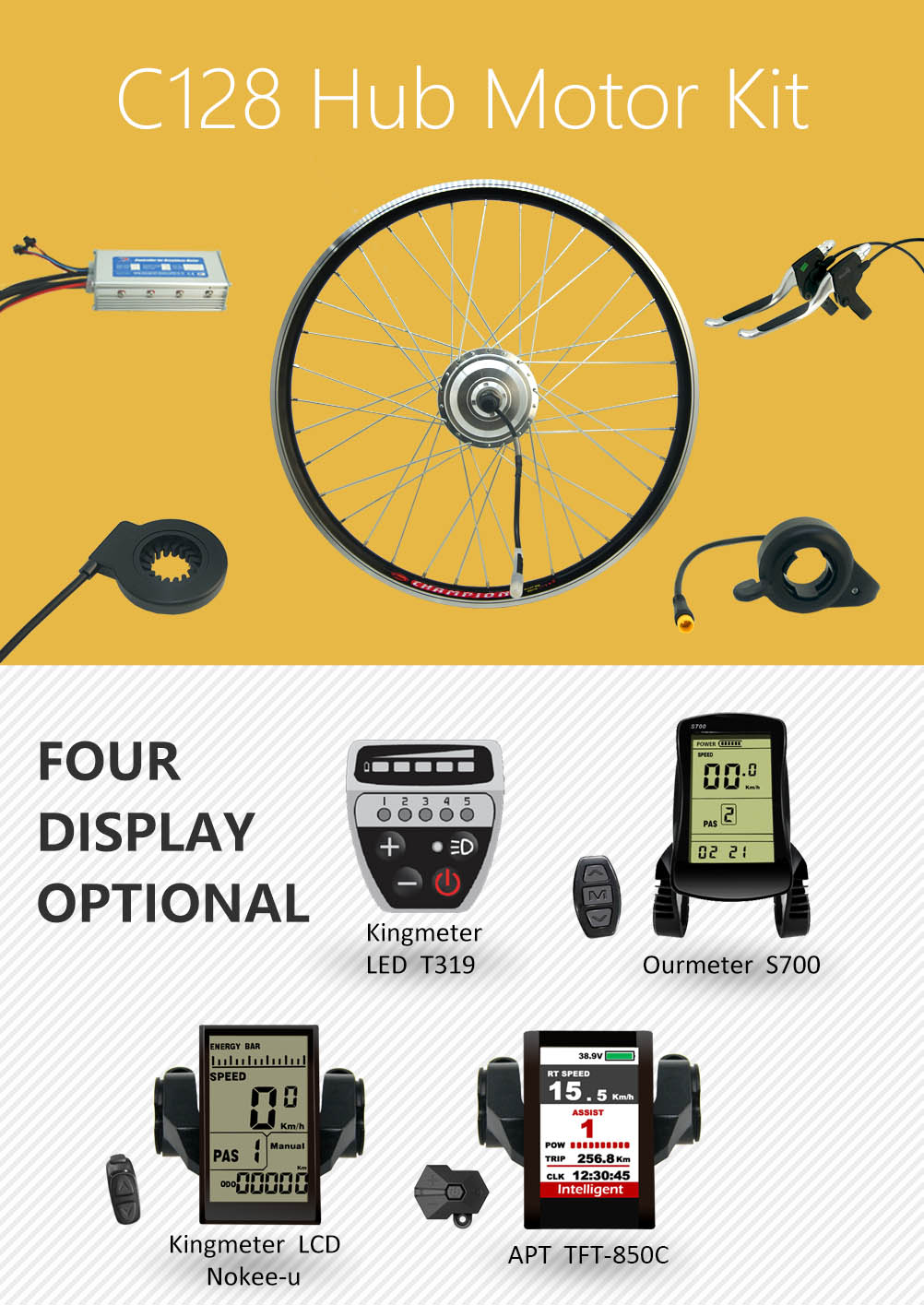

Optional Display
Kingmeter T319	Ourmeter S700	Kingmeter Nokee-u
APT TFT-850C	LCD S830

Technical Parameters

Rated Power	250W	350W
Nominal Voltage	36V	36V
Position	Front Motor/Rear Motor	Front Motor/Rear Motor
Construction	Brushless Geared Motor	Brushless Geared Motor
RPM	180-235	180-235
Max Torque	15N.m	15N.m
Efficiency	80%	80%
Hall Sensor	With	With
Axle	100mm(Front)/135mm(Rear)	100mm(Front)/135mm(Rear)
