5000W Hub Motor
    • 5000W Hub Motor

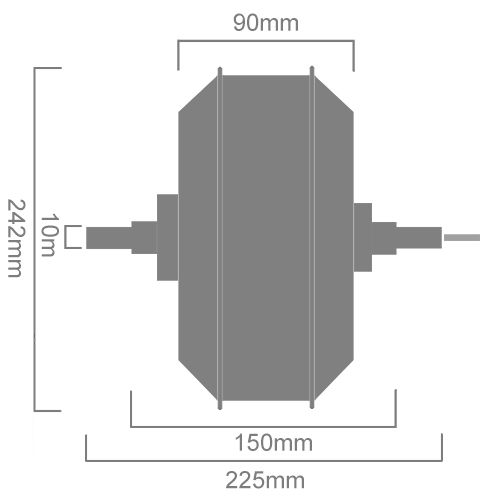

Specifications Dimension





Rated Power 5000W
Nominal Voltage 60V/72V/84V/94V
Position Rear Motor
Construction Brushless Gearless Motor
RPM 389-809
Max Torque 91N.m
Efficiency 87%
Hall Sensor With
Axle 150mm
Brake Disc Brake
Weight 12.7kg
Cabling Shaft side, Left
Spoke 12G
Color Black
Hub holes
36 holes







Specifications Dimension





Rated Power 5000W
Nominal Voltage 60V/72V/84V/94V
Position Rear Motor
Construction Brushless Gearless Motor
RPM 389-809
Max Torque 91N.m
Efficiency 87%
Hall Sensor With
Axle 150mm
Brake Disc Brake
Weight 12.7kg
Cabling Shaft side, Left
Spoke 12G
Color Black
Hub holes
36 holes
