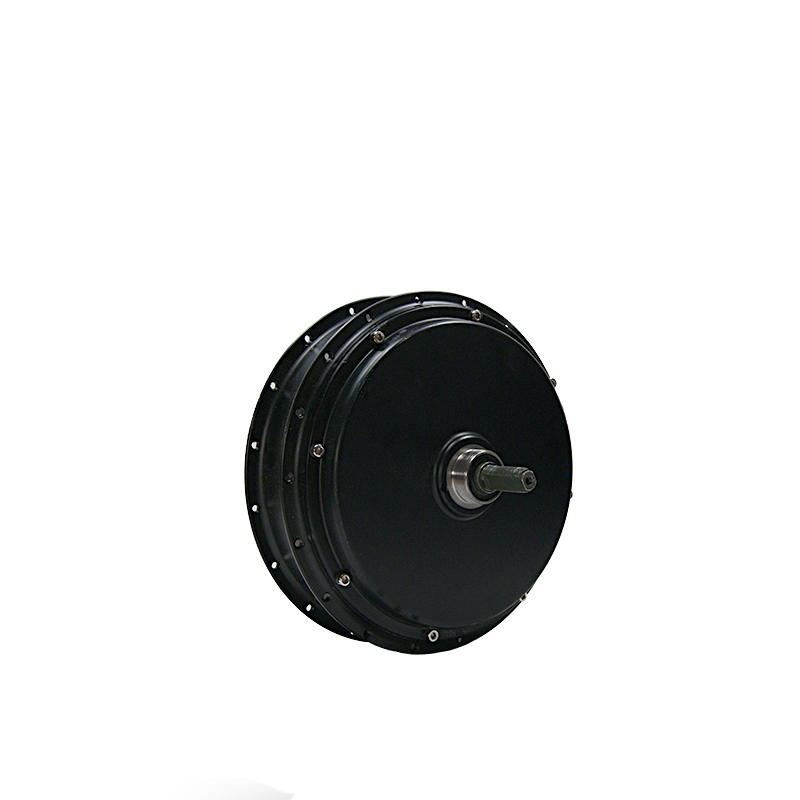

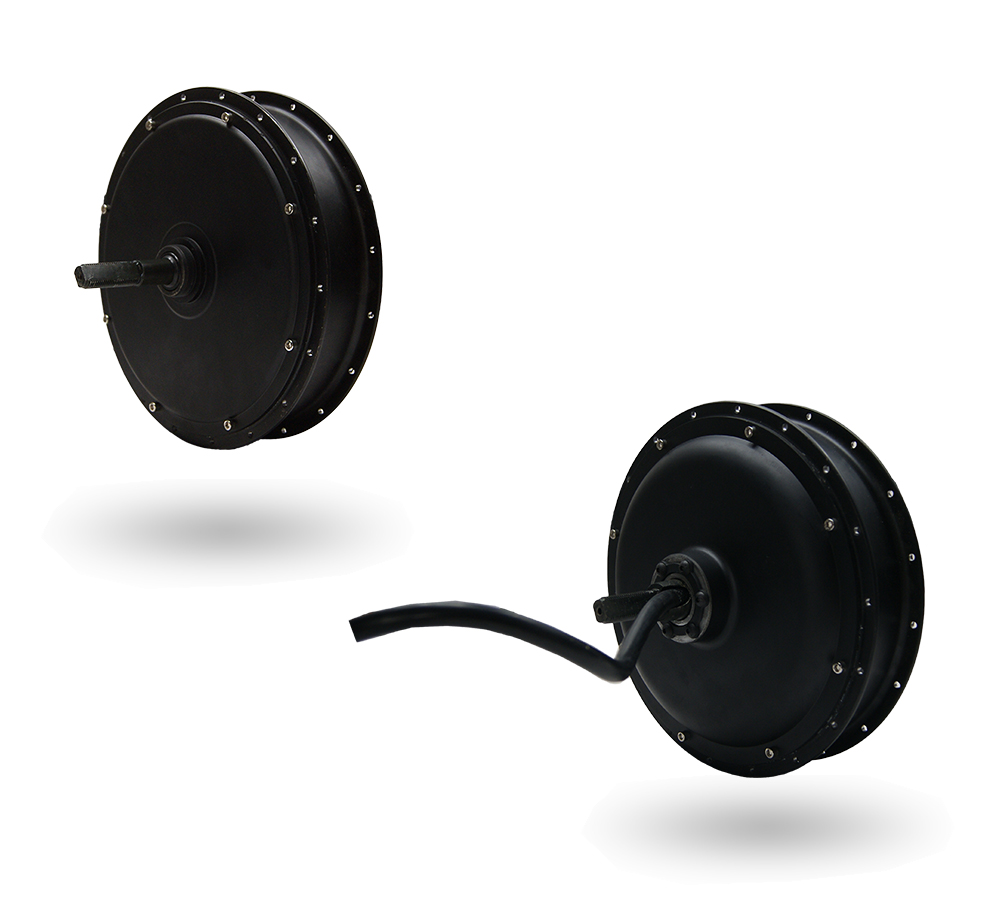

3000W Hub Motor
    • 3000W Hub Motor

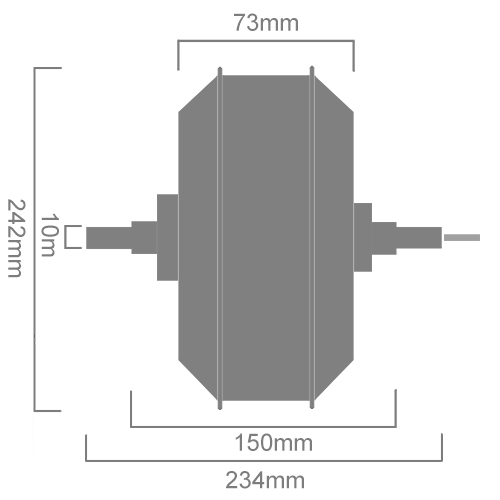

Specifications Dimension





Rated Power 3000W
Nominal Voltage 48V/60V/72V/84V
Position Rear Motor
Construction Brushless Gearless Motor
RPM 82-1175
Max Torque 95N.m
Efficiency 90%
Hall Sensor With
Axle 150mm
Brake Disc Brake
Weight 9.4kg
Cabling Shaft side, Left
Spoke 12G
Color Black
Hub holes
36 holes







Specifications Dimension





Rated Power 3000W
Nominal Voltage 48V/60V/72V/84V
Position Rear Motor
Construction Brushless Gearless Motor
RPM 82-1175
Max Torque 95N.m
Efficiency 90%
Hall Sensor With
Axle 150mm
Brake Disc Brake
Weight 9.4kg
Cabling Shaft side, Left
Spoke 12G
Color Black
Hub holes
36 holes
