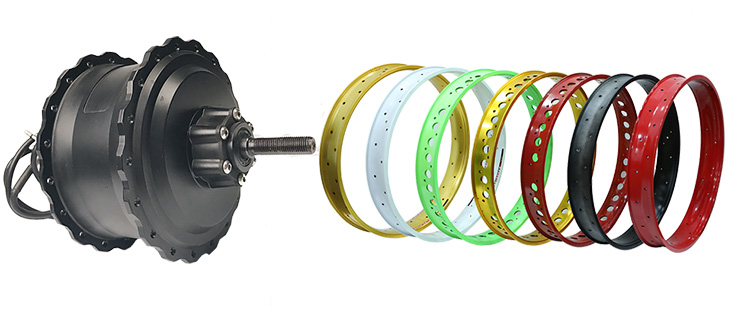

cnebikes H06 geared motor Fat tyre 26*4 / 20*4 electric bike kit

This rear-drive geared  motor kit , which is compatible with the disc brake, has a rated power from 250W to 500W, a reduction ratio of 1: 5 and a maximum torque of 80 N.m, providing ideal power for vehicles. Strong and efficient, this motor, working together with a cassette or freewheel speed change mechanism, greatly enhances riding comfort and is suitable for beach buggies and snow bikes.


36v/48V brushless Geared Hub motor  for fat bike (32-38Km/h):


1). Very light and low noise
2). 4.4 reduction ratio with high torque
3). 170mm /190mm dropout for bikes
4). OEM warmly welcome



36V/48V 25a brushless controller:

1). Inside with 9Mosfets good tube,square wave controller
2). 120 degree phrase position(120º)


Thumb throttle/Twist throttle:


1). Wuxing brand
2). Power indicator/Lock available


Pedal-assistant sensor(PAS):


1). 5/8  magnet points available with good quality

2).5 magnet for the kit without display ,8 magner for display kit
3). Good response speed and sensive for pedal assistance


Display(LCD3):
1. Single trip time(TM)+total trip time(TTM) Real time km/h or MPH display
2. Single Max speed(MXS)+single Average Speed(AVS)
3. Single trip distance(DST)+Total Trip distance(ODO)
4 .6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing
5.24V,36V,48V compatiable.
6. Data clear+parameter copy+Fault code Disply.


E-brake/Brake sensor:


1). Size: 36mm*12mm*16mm(hydralic brake sensor is also ok )
2). Fit for all bikes with normal or hydraulic disc brakes
3). Easy installation,no need to remove original brake levers
4). Cut power automatically once brakes move
