LCD3 Display Error Code Definition
Have already visited 346  08/03/2017

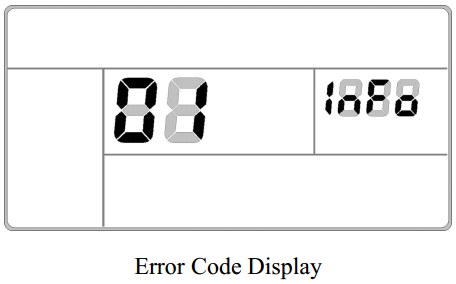

Error Code Display

When the electronic control system of the electric vehicle fails, and the meter will
automatically display (flicker) fault code. You can’t exit the fault code display only the
fault is removed.

Error Code & Definition Table

01_info Throttle Abnormality

03_info Motor Hall Signal Abnormality
04_info Torque sensor Signal Abnormality
05_info Axis speed sensor Abnormality(only applied to torque sensor )
06_info Motor or controller has short circuit Abnormality

Motor operating temperature alarm:
Under any interface, when the motor operating temperature exceeds the warning value,
the motor operating temperature display flashes to alarm, meanwhile, the controller will
offer the appropriate protection to motor.
