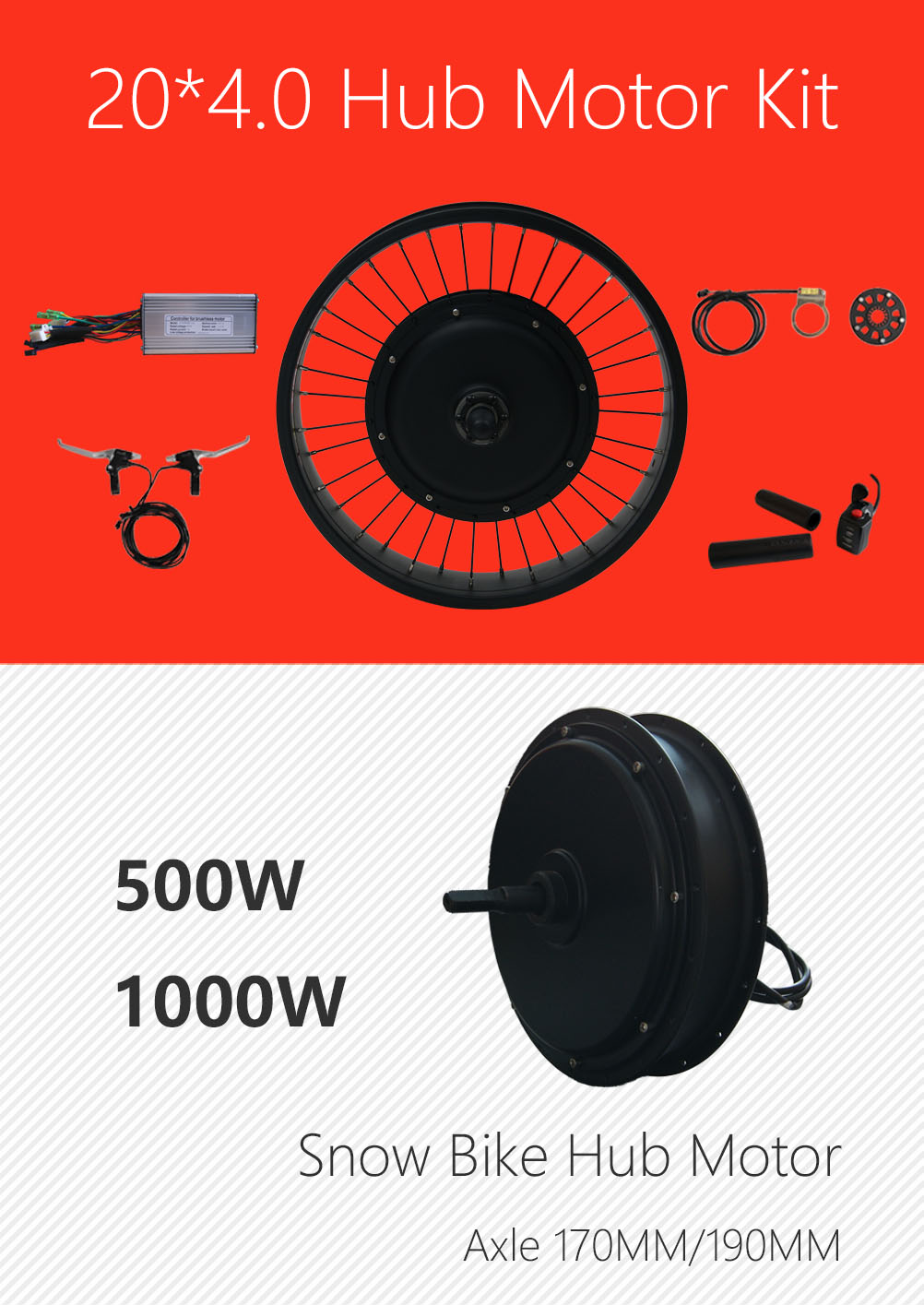

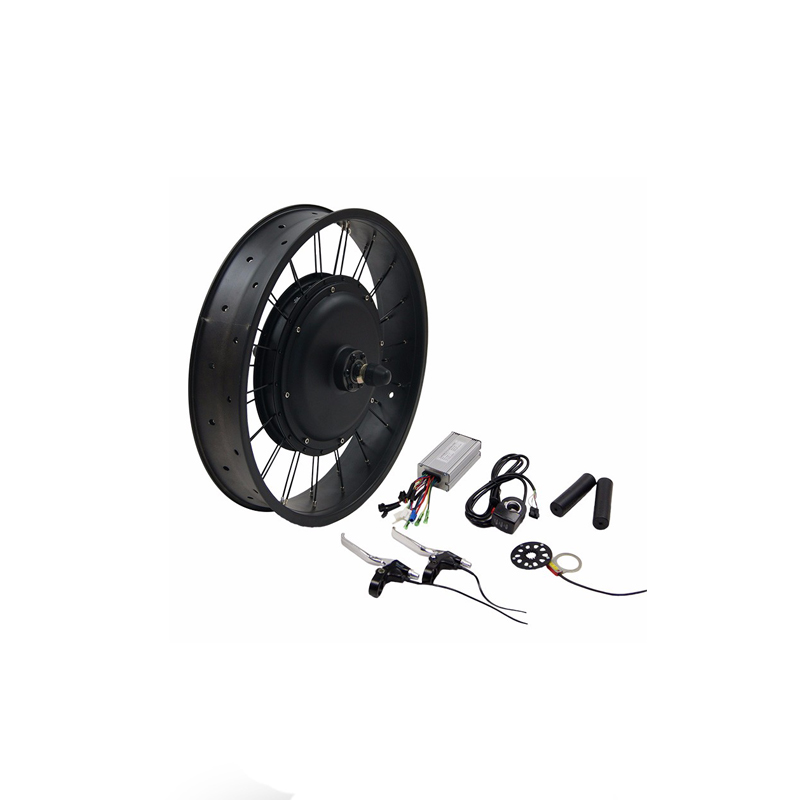

Front Rear Wheel Big Brushless Gearless Motor 36V/48V 500W/1000W 20*4.0 Fat Tyre Motor Bike Bicycle Conversion Kit
    • Front Rear Wheel Big Brushless Gearless Motor 36V/48V 500W/1000W 20*4.0 Fat Tyre Motor Bike Bicycle Conversion Kit

21.jpg MOTOR
Long life , high speed, powerful,German
Quality 180 copper winding+ best
quanlitymagnet.
9311448602576546.jpg CONTROLLER
36V/48V brushless DC motor controller.
Intelligent controller,engineered to be
safe, prevent overheating and avoid motoror battery damage.
1.jpgBRAKE
WuXing aluminum brake levers.
Shut off the motor when you brake.

THROTTLE

WuXing thumb throttle (with battery
indicator)
Control Speed by moving the thumb
Beautiful design with good quality and
nice touch feeling
*If choose LED or LCD system , the
throttle without battery indicator

4.jpg PAS
1:1PAS system use the inertia in riding
and the motor power, to make your riding
use less effort and electric.Reduce the
burden on the battery, extend the range
and battery life at the same time.
5.jpg RIM
20*4.0 aluminium alloy double-wall alloy rim.
Have light weight and normal type for
optional.
Also have black,red,green,golden color for choice.


Optional Display

LED LCD 001 LCD 003
LCD 005 LCD S830






Technical Parameters


  Rated Power   500W

  1000W

  Nominal Voltage   36V/48V   48V
  Position   Front Motor/Rear Motor   Front Motor/Rear Motor
  Construction

  Brushless Gearless Motor

  Brushless Gearless Motor

  RPM   100-380   100-500
  Max Torque   32N.m   45N.m
  Efficiency   83%   83%
  Hall Sensor

  With

  With

  Axle

  135mm/170mm/190mm

  135mm/170mm/190mm
