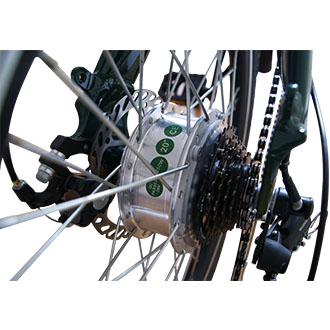

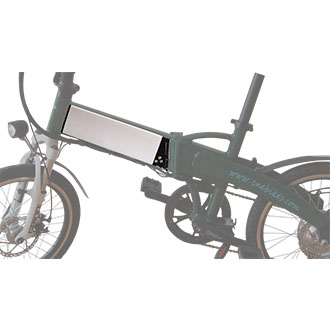

 Hidden battery and controller design. Make full use of every inch of space. Let small bike have big capacity. |  36V 250W geared hub motor with 7 speed gear |  LED front light. Control by the controller and integrated horn. Improve your cycling safety. |

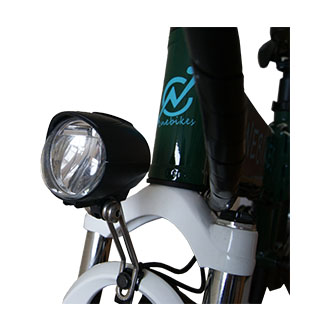

 LED front light. Control by the controller and integrated horn. Improve your cycling safety.

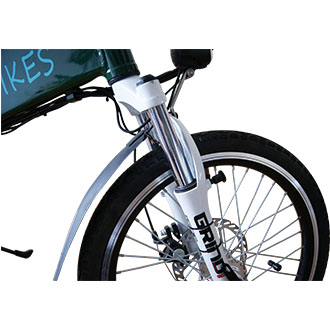

|  Can lock up front fork. Easy deal with city road and off-road.

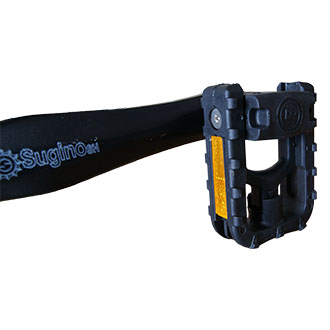

160mm disk brake for front and rear wheel. Provide super braking force. |  Folding pedal. |
Technical Parameters
| Frame Material | Aluminum alloy frame |
| Motor | 36V 250W brushless hi-speed rear motor |
| Battery | 36V/9Ah Lithium battery (the battery in the bike frame) |
| Controller | Intelligent controller |
| Charger | AC 100V-240V,2amps smart charger |
| Loading | 150kg |
| Tyre | 20*1.75 |
| Rim | double-wall alloy rim |
| Front fork | Aluminum can lock up front fork |
| Front brake | Disc-brake |
| Rear brake | Disc-brake |
| Derailleur | SHIMANO 7 Speed |
| Handle bar | Al alloy |
| Stem | Al alloy |
| Brake lever | WuXing brake levers |
| Chain wheel | 36T single speed |
| Saddle | Soft comfortable saddle |
| Seat post | Al alloy |
