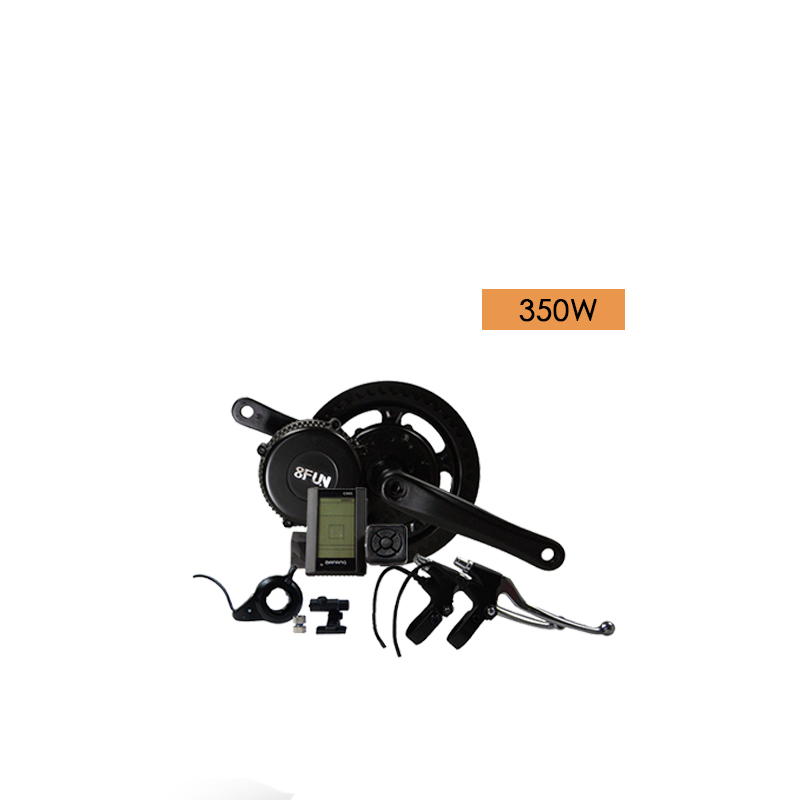

350W BAFANG MM G31 MID DRIVE MOTOR KIT
    • 350W BAFANG MM G31 MID DRIVE MOTOR KIT

bafang bbs


BAFANG BBS(MM G31) Mid Motor Kit


With an integrated speed sensor, this BBS(MM G31) mid-drive motor, which is compatible with standard bikes, has a rated power of 250W,350W and 500W, a reduction ratio of 1: 21.9 and a maximum torque of 80 N.m, providing ideal power for vehicles. This BBS(MM G31) mid motor need your bicycle bottom bracket is 68mm or 100mm.Light but strong and efficient, this BBS mid motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes. This BBS(MM G31) mid motor is black.



2.jpg BBS (MM G31) mid motor

3.jpg Crank

4.jpg Brake levers and thumb throttle




5.jpg Chain wheel and chain cover

6.jpg Waterproof connector

7.jpg Speed sensor




2801447319811855.jpg Screw and secure plate






Optional Display

3521447725826347.jpgC961 771447725826821.jpgC963 C965





Technical Parameters


  Rated Power

  250W   350W   500W   750W

  Nominal Voltag

  36V   36V/48V   36V/48V   48V

  Construction

  Geared Motor   Geared Motor   Geared Motor   Geared Motor

  RPM

  70-90   70-90   70-90   130-150

  Max Torque

  80 N.m   80 N.m   80 N.m   160N.m

  Efficiency

  80 %   80 %   80 %   80%

  Sensor

  Speed Sensor

  Hall Sensor

  Speed sensor

  Hall sensor

  Speed sensor

  Hall sensor

  Speed sensor

  Hall sensor

  IP-Code

  IP 65   IP 65   IP 65   IP 65

  Bottom Bracket

  68mm/100mm   68mm/100mm   68mm/100mm  68mm/100mm

  Chain Wheel

  44T/46T/48T/52T   44T/46T/48T/52T   44T/46T/48T/52T   44T/46T/48T/52T
