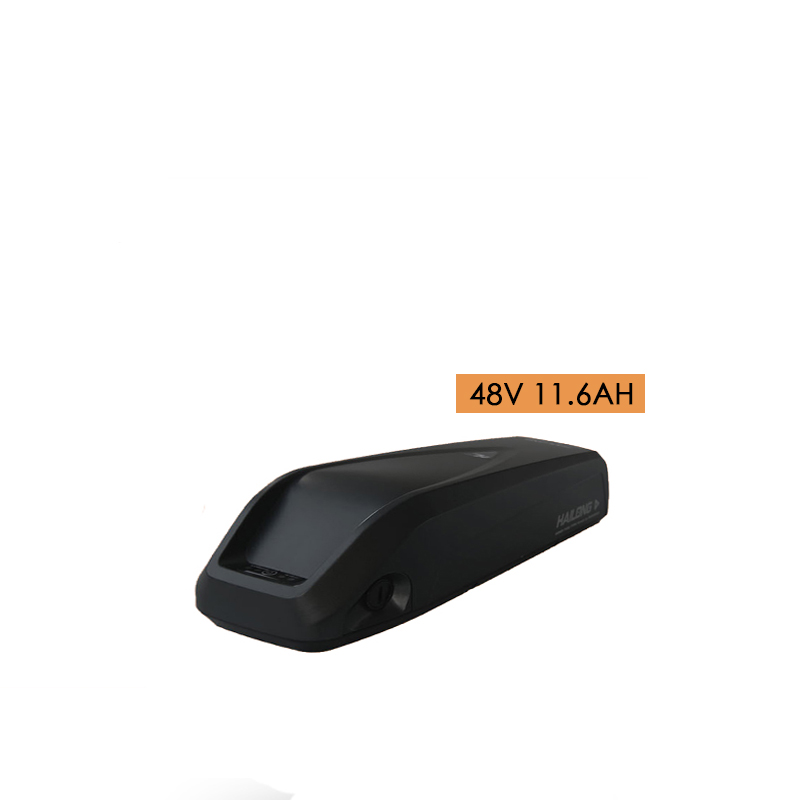

48V 11.6Ah HAILONG BATTERY
    • 48V 11.6Ah HAILONG BATTERY




Hailong downtube battery,2015 Newest type Lithium Battery Pack,can pack 48V 36V for electric bicycle ,holding 52pcs 18650 li-ion cells


Hailong downtube battery,thinner than dolphin battery,but without usb port.

61.jpgINDICATOR
LED lights show battery capacity
With Independent power switch

ALUMINUM HOLDER
Secure Keep your battery on the frame.

Built-in BMS (BATTERY MANAGEMENT
SYSTEM),protect the battery to avoid
overcharge and over discharge.


BATTERY CELL
18650 Rechargeable Lithium Battery cell.

No memory effect, recharge up to 1000 cycles.

Higher energy density and lower weight than other types rechargeable batteries cell.

54.jpgCHARGER
Intelligent charge system: voltage of
each cell can be detected ,each cell
can beprotected against overcharge,
over voltage ,short circuit and
overheat , and so that battery can be
charged balance.
45.jpgPLUG
Supply different standard plug
c1.jpgMOUNTING POSITON





Technical Parameters


  Nominal

  Voltage

  Rated

  Capacity

  Battery

  Material

  Battery Cell   Dimension

  Rated Discharge

   Current

  Max Discharge

  Current

  Cycle Life
36V 13Ah   Li-Polymer   3.7V 2600mAh     (S)   35*9*11.5(cm) 20A 25A   800(70%)
48V 10.4Ah   Li-Polymer   3.7V 2600mAh     (S)   35*9*11.5(cm) 25A 30A   800(70%)
48V 11.6Ah   Li-Polymer   3.7V 2900mAh     (S) (P)   35*9*11.5(cm) 30A 35A   800(70%)

*S=SAMSUNG

P=PANASONIC
